Fiber Diameter Analyser

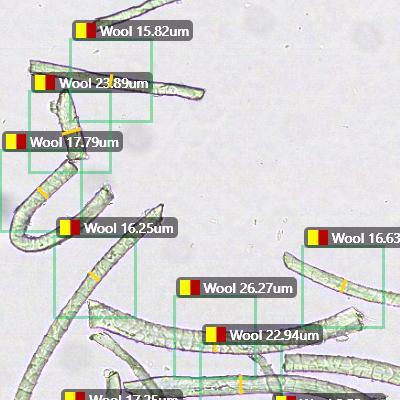

Fiber diameter scanning effect. Click to experience
The fiber diameter analysis system is suitable for the diameter detection of animal fibers, plant fibers and chemical fibers. it can accurately measure the diameter of textile fibers; it can find each fiber scanned and use artificial intelligence to analyze and measure the diameter of each fiber. it can measure the number of fiber bundles, average diameter, diameter label difference, diameter range, coefficient of variation, number and proportion of each group of fibers with a diameter spacing of 1. the maximum number of measurements exceeds 5,000, the fastest is 3 min you can see the report results, unattended 24 hours a day, and the maximum number of reports per unit per day is greater than 200.
| Main Functions of The Product | |
|---|---|
| Scope of Application | The diameter measurements of natural and non-natural fibers can be performed, such as glass fibers, animal hair fibers, bamboo fibers, carbon fibers, etc., and the data can be analyzed. |
| 24no one on duty at the hour | Automatic scanning equipment, without manual intervention, automatically finds the position of the slide after putting the produced samples into the device, and the scanning throughput supports 240 tablets each time. |
| Fiber Diameter Calculation | AI automatically perform diameter measurement on samples, and accurate diameter measurements can be carried out in complex samples and environments. |
| Multiple Remote Audits | Support multiple people to review the same fiber simultaneously through the cloud, and the report is more accurate. as long as there is a network and a computer, you can work. |
| Data Cloud Storage | The data stored in the cloud will not be lost, and you can view it at any time |
| Fade Light Scanning | Dark samples do not fade, giving the same effect as after fading |
| Automatic Reporting | Automatically generate statistical reports for measured data without manual participation |
| Main Technical Indicators of The Product | |
|---|---|
| Scan Range | Maximum scanable area:29mm×18mm |
| Objective Lens | 20time (magnification 200 times), 40 times (magnification 400 times), 100 times (magnification 1000 times) |
| Slide Loading | Up to 240 slides (30 /box, load up to 8 boxes at a time) |
| Scanning Speed | not less than 0.75 cm²/min |
| Scan Resolution | ≤0.2um/pixel |
| Image Deformation Error | less than 1 Pixel/mm |
| Support Picture Format | jpg,tif |
| External Dimensions | L x W x H:1090mm x 660mm x 1450mm |
| Product Weight (Net Weight) | 400±2Kg |
| Single Sample Report Time | 3min/each |
| Scan Rate Sample Size Per Day | more than 200 copies |
| Scan The Sample Size Every Day | 24unattended operation on the hour |
