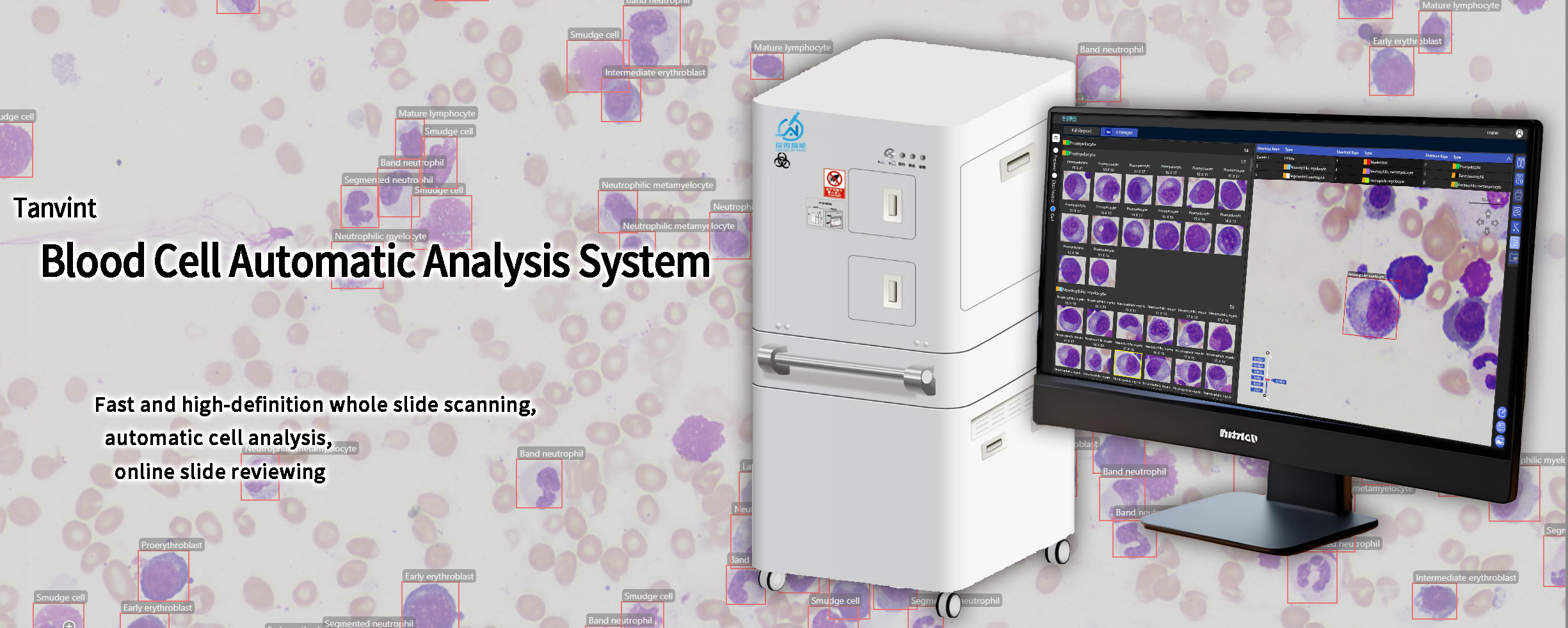

Bone Marrow Nucleated Cell Analysis System
Sharp whole slide scanning images are obtained with 100x oil lens. Cells are automatically analyzed across the entire slide. Digitalized slide review and management are achieved through this system.
Core Features
High Precision & Resolution Scanning
Scan the whole slide with 100x oil lens. Ultimate and stable scanning results can be achieved thanks to advanced focusing algorithms and mechanisms.
Automatic Quantification

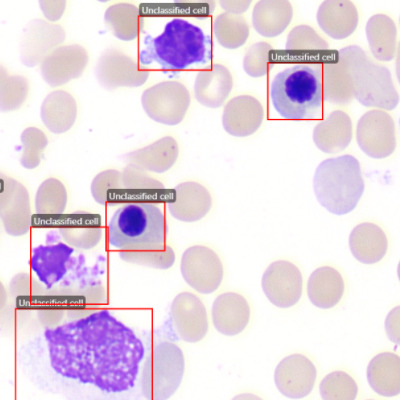

Utilize accurate and efficient cell classification algorithms to automatically analyze cells across the whole slide.
Digitization and Traceability
Digitalized slides make storage and management more convenient. Key morphological information markings enable diagnosis traceability.
Online Review & Cloud Storage
Web-based smart UI and cloud storage enable efficient reviewing and remote working.
Automatic and Fast
Scan a single slide in 10 minutes. 30 slides per box, up to 8 slide boxes; supports continuous loading and unloading with replenishment of slide boxes. Automated processes without human attendance.
Technical Parameters
| Device Model | TW-M-100X-320-A |
|---|---|
| Scan Range | Maximum scanable area:29mm×18mm |
| Objective Lens | 100time (1000 times magnification) |
| Slide Loading | 30 slides per box, up to 8 slide boxes; supports continuous loading and unloading with replenishment of slide boxes. |
| Scanning Speed | Not less than 0.3 cm²/min |
| Scan Resolution | ≤0.085µm/pixel |
| Camera Image Distortion Error | Camera image distortion in the X and Y directions during planar scanning is less than 1 Pixel/μm |
| Connection Method | USB2.0 protocol, USB3.0 protocol, network port (TCP/IP protocol )、Camera Link protocol |
| Support Picture Format | jpg,tif |
| External Dimensions | L x W x H:1090mm x 660mm x 1450mm |
| Product Weight (Net Weight) | 400±2Kg |
| Single Slide Scanning Time | 10min/each |
| Estimated Daily Slide Scanning Capacity | Approximately 144 slides/24 h (estimated at 10 min/slide, excluding additional handling time) |
| Equipment Operation Stability | 24unattended operation on the hour |
Application Scenarios
Applicable to third-party testing institutions and hospitals for slide digitization scanning and storage; also suitable for R&D institutions for data collection and analysis.
