Fiber Powder Length Analysis System

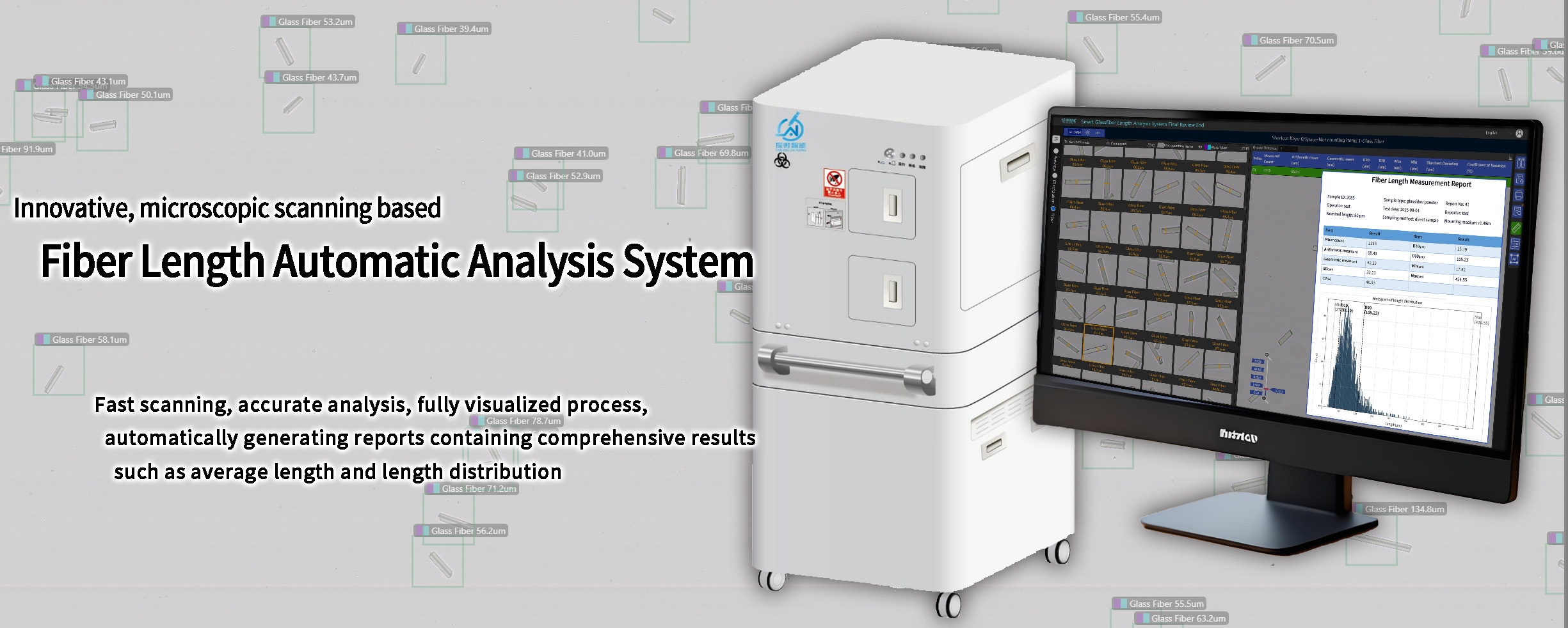

Fiber powder length, diameter and aspect-ratio analysis with image review and automated reports. Supports 10,000 particles under suitable preparation and scan settings. Request sample evaluation.
- After sample preparation, loading, and initiation: automatic scanning, focusing, and measurement

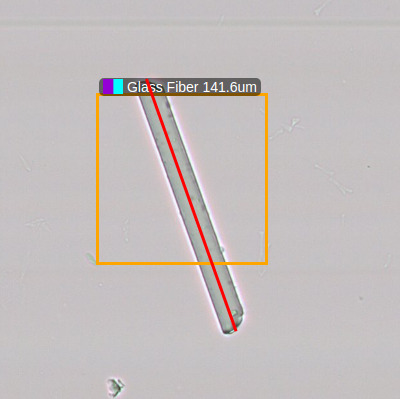

- AI deep learning recognition with image and measurement review for each identified fiber
- Automated reporting; agree on applicable methods and acceptance criteria for your samples.
- Data can be exported to Excel/PDF, with support for cloud data management
- Simple operation; ordinary workers can take up the post after brief training
Core Features
High Precision Length Analysis
Review image-linked measurements. Evaluate measurement error using calibration and reference tests.
Comprehensive Report
Automatically scan, analyze, and generate reports with length and diameter statistics, including mean length, length standard deviation, diameter standard deviation, coefficient of variation (CV), and length distribution histograms.
Visualization and Traceability
Supports statistics for 10,000 particles with image-linked length markings. Actual counts depend on scan area and sample preparation.
Applications
It can accurately analyze the length of fibers such as glass fiber, carbon fiber, and basalt fiber, etc.
Automatic and Fast
Automated scanning, analysis and reporting. Timing depends on scan area, preparation and particle count; request sample evaluation to confirm.
Technical Parameters
Detection ranges, counts and times are reference values for typical configurations. They can vary with materials, detection settings and equipment configuration; refer to the actual configuration and task. Prepare separated, non-overlapping fibers of suitable length. Fast mode reduces capture area, count and time. Check actual report counts; software calculation precision is not total measurement error.

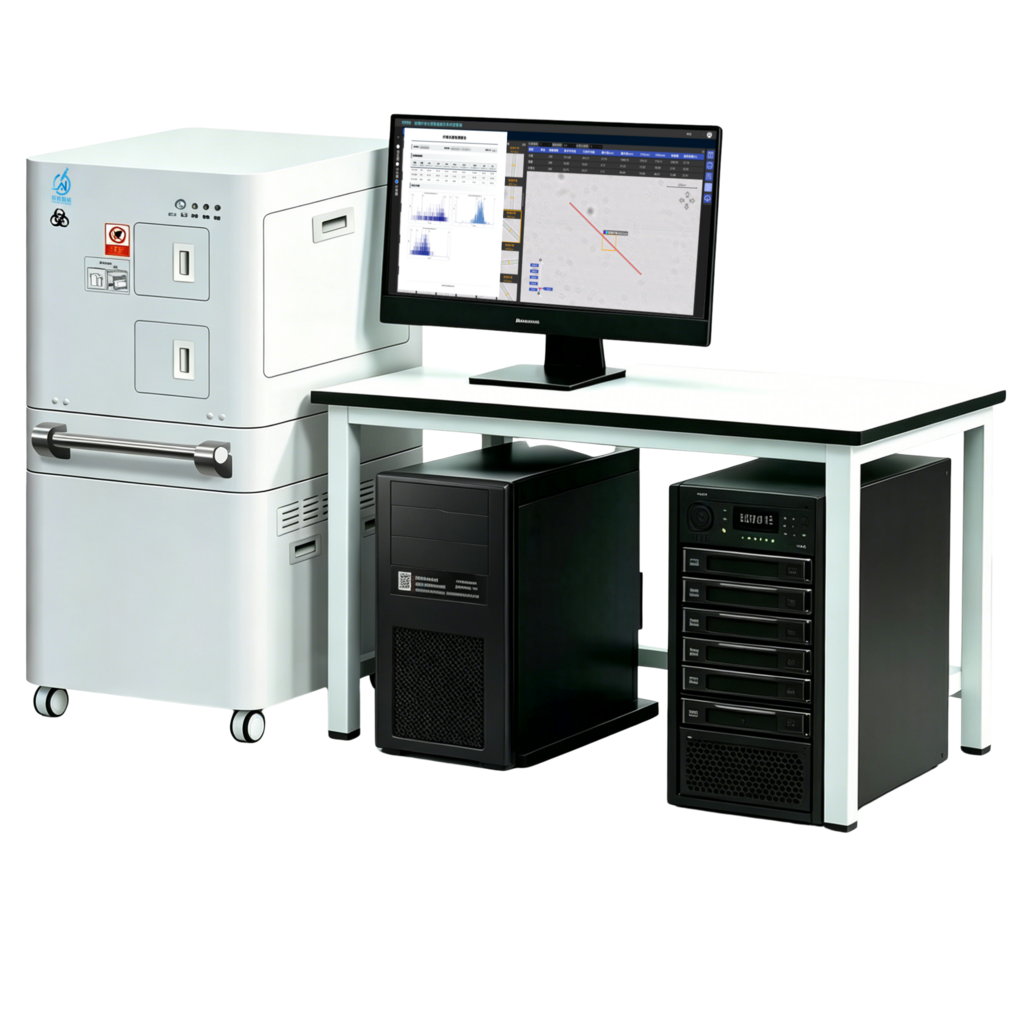

| Product Model | TW-H-20X-N-GF-L-01 |
|---|---|
| Length Range | 20~2000μm |
| Diameter Range | 4~25μm |
| Number of Powder Particles per Measurement | ≤10,000 particles (under brochure conditions) |
| Physical Magnification of Captured Images | 200x |
| Digital Magnification of Captured Images | 1000x |
| Historical Report Storage Capacity | 100,000 reports |
| Digital Slide Storage Capacity | 20,000 slides |
| Power Supply Range | AC220V ±15%, Frequency: 50/60Hz |
| Power Consumption | ≤300VA |
| Operating Temperature | 5℃ ~ 40℃ |
| Humidity Range | ≤80% |
| Sample Loading Capacity | 30 slides per box, up to 8 slide boxes; supports continuous loading and unloading with replenishment of slide boxes. |
| Scanning Speed | ≤10.6cm²/min |
| Scanning Resolution | ≤0.35μm/pixel |
| Detection Time | Depends on scan area and preparation; confirm with sample evaluation |
| Equipment Operation Stability | 7*24 hours unattended operation |
| Operating Software | Linux, Windows |
| Dimensions (L × W × H) | 1090 × 660 × 1450 mm |
| Net Weight | 400 ± 2 kg |

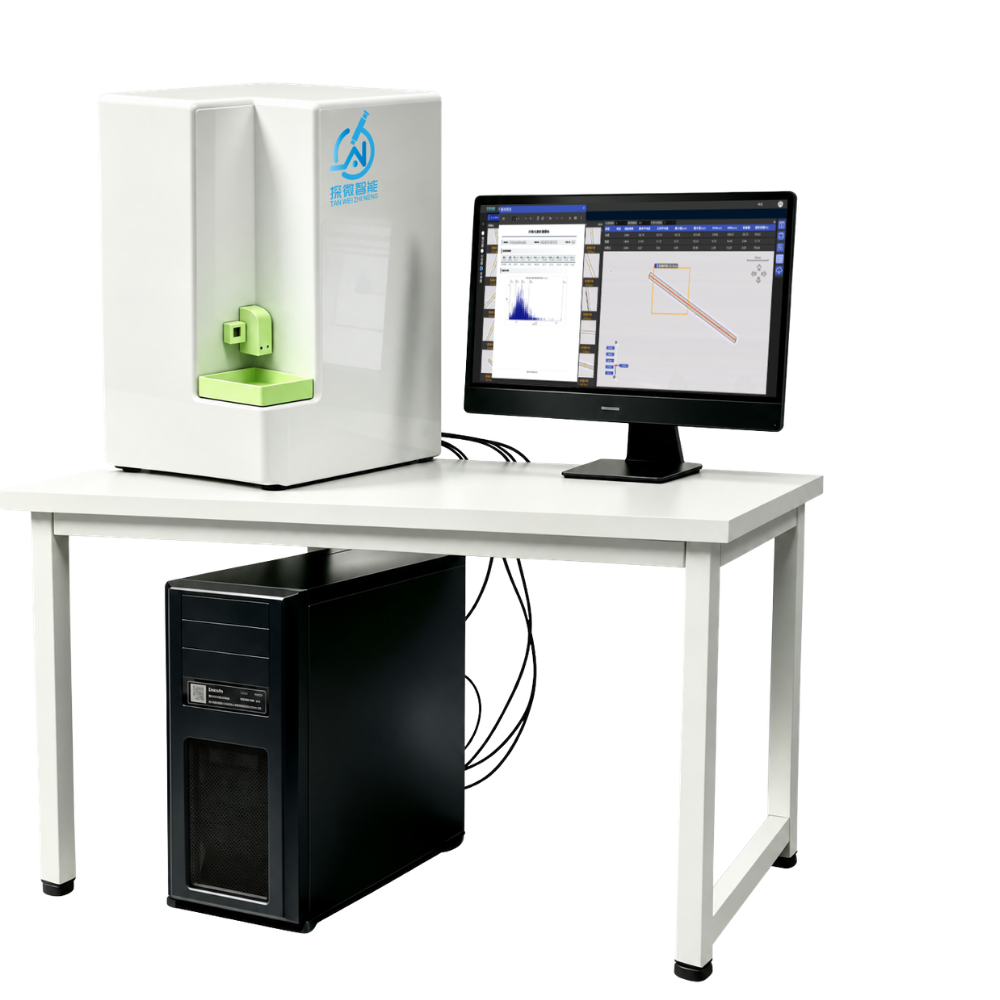

| Product Model | TW-D-20X-N-GF-L-01 |
|---|---|
| Length Range | 20~2000μm |
| Diameter Range | 4~25μm |
| Number of Powder Particles per Measurement | ≤10,000 particles (under brochure conditions) |
| Physical Magnification of Captured Images | 200x |
| Digital Magnification of Captured Images | 1000x |
| Historical Report Storage Capacity | 2,000 reports |
| Digital Slide Storage Capacity | 100 slides |
| Power Supply Range | AC220V ±15%, Frequency: 50/60Hz |
| Operating Temperature | 5℃ ~ 40℃ |
| Humidity Range | ≤80% |
| Sample Loading Capacity | Single slide |
| Scanning Speed | ≤10.6cm²/min |
| Scanning Resolution | ≤0.35μm/pixel |
| Detection Time | Depends on scan area and preparation; confirm with sample evaluation |
| Operating Software | Windows |
| Dimensions (L × W × H) | 500 × 543 × 613 mm |
| Net Weight | 30 ± 2 kg |
One Report Reveals Fiber Quality

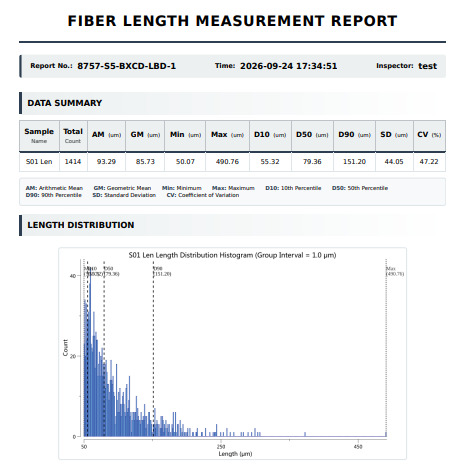

Reports show the measured distribution and image-linked results. Agree on applicable methods, calibration and acceptance criteria for each sample type.
- Multi-dimensional Indicators:10 core indicators (total count, mean, extreme values, length percentiles D10/D50/D90, coefficient of variation (CV), etc.) for a comprehensive analysis of fiber length characteristics.
- Visualization Histogram:Clearly presents the length distribution, with key length statistics such as Min, D10, D50, D90, and Max at a glance.
- System Advantages:Accurate detection, intelligent efficiency, and professional reports, suitable for multiple scenarios.
- Application Value:Helps optimize processes and control quality in fields such as new materials, textiles, and powder quality control.
Easy Access, Efficient Verification
The report supports online viewing. The full content can be accessed directly on the corresponding product page on the official website — no download required, allowing quality verification anytime, anywhere, and improving decision-making efficiency.
Methods & Demonstrations
Application Scenarios
Widely used in quality inspection for reinforcing fiber manufacturers such as glass fiber, carbon fiber, basalt fiber, and quartz fiber, as well as in materials science research at universities and research institutes.
FAQ
Is powder preparation the same as filament preparation?
Sampling and dispersion differ. The powder tutorial disperses powder directly in adhesive; filament tutorials cut the fibers before dispersion. Use material-specific adhesive, coverslip and curing conditions.
Which measurements should be read together?
Read length, width, aspect ratio and their distributions, together with the valid object count and individual images. Length and width use μm; aspect ratio is dimensionless. Do not replace the reported ratio statistics with a quotient of two means.
Can we evaluate our own samples?
Contact us with your material, sample volume and reporting requirements. Review representative sample measurements and agree on the configuration and acceptance criteria.
How many fibers can one test include?
The system supports tasks with 10,000 or more fibers under suitable preparation and scan settings. Fast mode uses a smaller capture area and may count fewer fibers. Check the actual count in each report.
