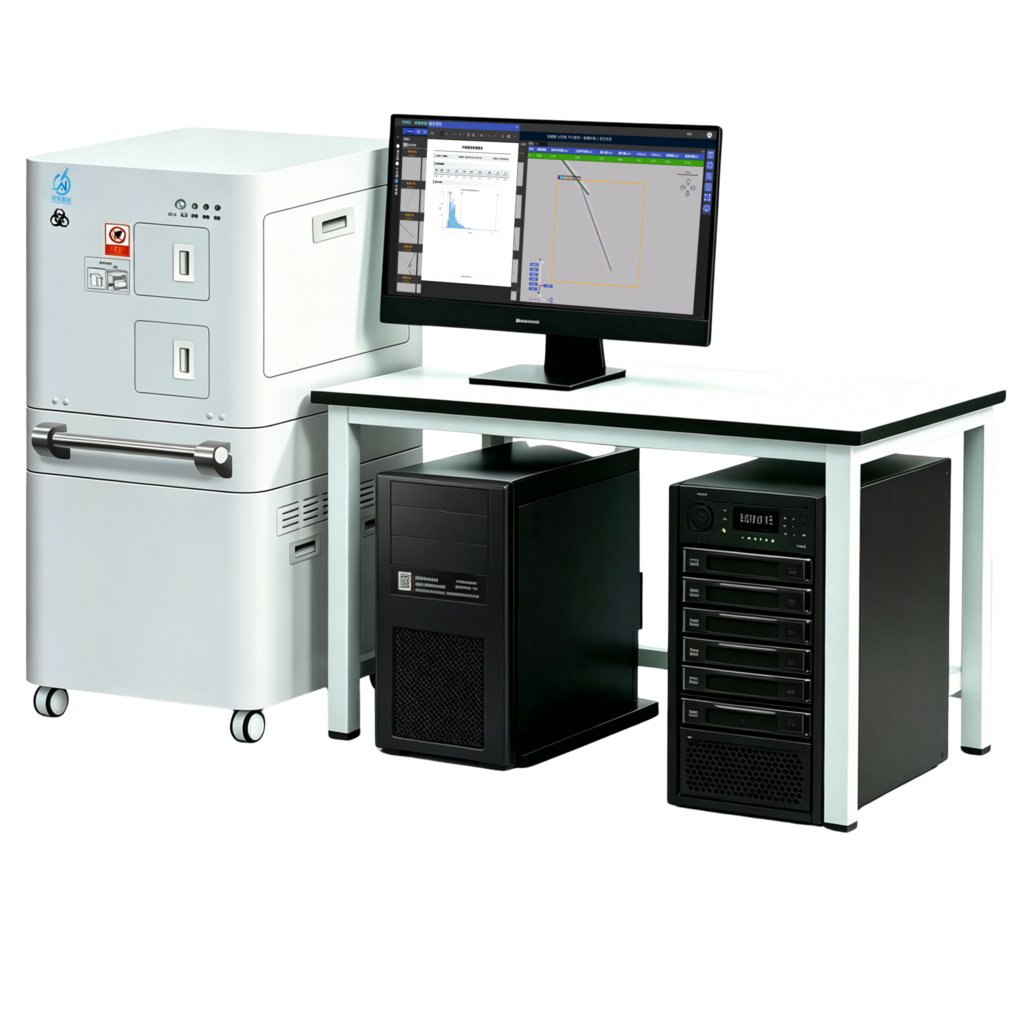

Ultrafine Fiber Diameter Analysis System
Ultrafine glass fiber, glass wool and mineral wool diameter analysis with automated scanning, identification and distribution reports. Supports multilayer fiber statistics; actual counts and timing depend on scan area and preparation. Review results alongside their images.
- Automatic scanning, focusing and measurement; preparation and slide handling are separate
- AI-assisted target-fiber identification with image-linked measurement review
- Automated diameter and distribution reports; confirm applicable standards and sampling conditions for the intended use
- Data can be exported to Excel/PDF, with support for cloud data management
- Simple operation; ordinary workers can take up the post after brief training
Core Features
High Precision Diameter Analysis
Review measurements alongside their microscope images. Measurement error must be evaluated for the specific model through calibration and reference testing.
Comprehensive Report Data
Automatically scan, analyze, and generate measurement reports, providing results including average diameter, standard deviation of diameter, coefficient of variation, diameter distribution histogram, and more.
Visualization and Traceability
Supports multilayer fiber statistics with image-linked diameter markings. Actual counts depend on scan area and sample preparation.
Automatic and Efficient
Automated scanning, analysis and reporting. Timing depends on scan area, layers and sample count; see the specific conditions in Technical Parameters.
Technical Parameters
Detection ranges, counts and times are reference values for typical configurations. They can vary with materials, detection settings and equipment configuration; refer to the actual configuration and task. Prepare separated, non-overlapping fibers of suitable length. Fast mode reduces scan area, time and count; check actual report counts. Timing excludes preparation and slide handling. Counts and timing should be checked against brochure conditions and actual samples. Software calculation precision is not instrument measurement error.
| Product Model | TW-H-40X-N-MW-D-01 |
|---|---|
| Diameter Range | 1~6μm (multilayer scanning); 4~15μm (single-layer scanning) |
| Number of Fibers per Single Measurement | Up to 10,000 fibers (nominal product manual specification) |
| Software calculation precision (not instrument error) | 0.01 μm |
| Physical Magnification of Captured Images | 400x |
| Digital Magnification of Captured Images | 2000x |
| Historical Report Storage Capacity | 100,000 reports |
| Digital Slide Storage Capacity | 5,000 slides |
| Power Supply Range | AC220V ±15%, Frequency: 50/60Hz |
| Power Consumption | ≤300VA |
| Operating Temperature | 5℃ ~ 40℃ |
| Humidity Range | ≤80% |
| Sample Loading Capacity | 30 slides per box, up to 8 slide boxes; supports continuous loading and unloading with replenishment of slide boxes. |
| Scanning Speed | ≤3.5cm²/min |
| Scanning Resolution | ≤0.17 μm/pixel |
| Detection Time | 1~6μm (multilayer scanning): 5 min; 4~15μm (single-layer scanning): 3 min |
| Equipment Operation Stability | 7*24 hours unattended operation |
| Operating Software | Linux, Windows |
| Dimensions (L × W × H) | 1090 × 660 × 1450 mm |
| Net Weight | 400 ± 2 kg |

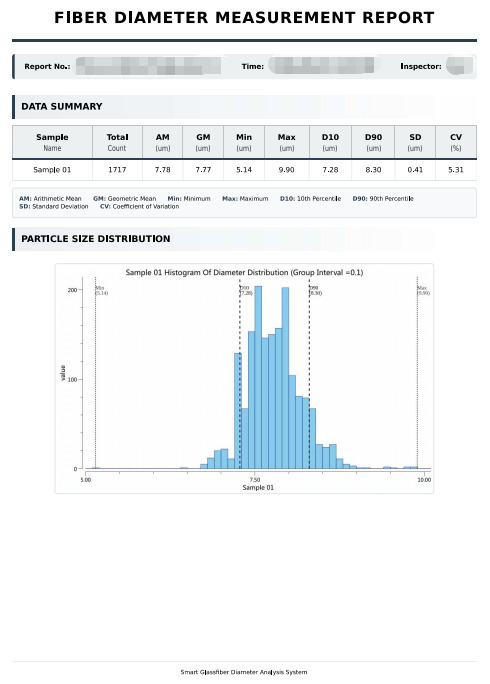

Internationally Compliant Professional Report
This report strictly adheres to 《 ISO 1888 2022 Textile glass - Staple fibres or filaments - Determination of average diameter》. It focuses on product diameter, provides accurate quantitative analysis, and serves as an authoritative basis for quality verification, material selection, and compliance review.
The report includes multi-dimensional key indicators to clearly present diameter distribution and stability:
- Basic Statistics:Mean diameter, standard deviation, coefficient of variation, and maximum/minimum values, reflecting batch consistency;
- Characteristic Parameters:D10 and D90 are the diameter values (μm) at the 10th and 90th percentiles of the cumulative diameter distribution; the statistical basis is specified in the report;
- Visualization:Diameter distribution histogram, intuitively presenting the distribution pattern for quick assessment of process compatibility.
Easy Access, Efficient Verification
The report supports online viewing. The full content can be accessed directly on the corresponding product page on the official website — no download required, allowing quality verification anytime, anywhere, and improving decision-making efficiency.
Application Scenarios
Widely used in quality inspection for reinforcing fiber manufacturers such as glass fiber, carbon fiber, basalt fiber, and quartz fiber, as well as in materials science research at universities and research institutes.
