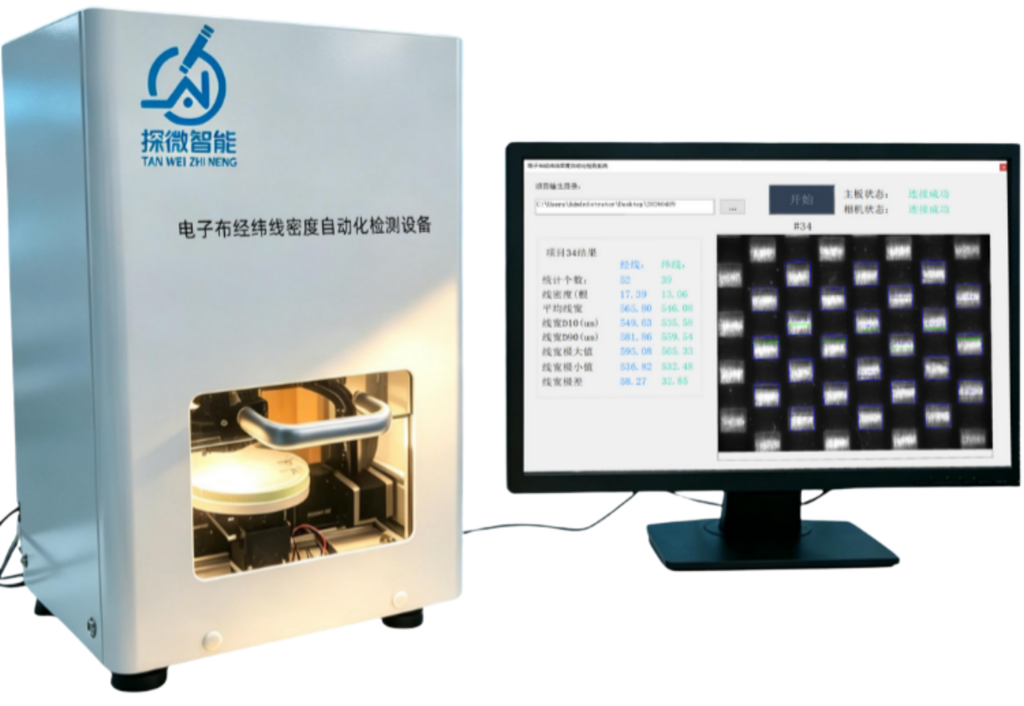

Electronic Fabric Smart Analyzer
Automatic measurement of electronic-fabric warp/weft density and yarn width. Review images and exported reports; timing depends on sample and scan conditions.
- After sample preparation, loading, and initiation: automatic scanning, focusing, and measurement
- AI deep learning algorithm that accurately identifies every piece of fabric
- Automated reporting; agree on applicable methods and acceptance criteria for your samples.
- Data can be exported to Excel/PDF, with support for cloud data management
- Simple operation; ordinary workers can take up the post after brief training
Core Features
High-precision Accurate Measurement
Micron-level visual recognition accurately detects the warp and weft density of electronic fabric, avoids manual visual errors, and ensures accurate and traceable inspection data.
Fully Automatic and Efficient Inspection
No manual yarn counting is needed throughout the process. Inspection is completed automatically with one click, delivering results quickly and greatly saving labor and time costs in quality inspection.
Multi-parameter Comprehensive Inspection
Simultaneously detects warp and weft density, width of electronic fabric. It is compatible with various types of electronic fabric and meets high-standard quality inspection requirements in the industry.
Intelligent and Traceable Data
Automatically generates inspection reports and supports data export and archiving, facilitating quality control and replacing manual work to reduce costs and improve efficiency.
Technical Parameters
| Device Model | TW-E-LW-N-01 |
|---|---|
| Objective Lens | 2x |
| Measurement Precision | 5μm |
| Maximum Measurement Error | ≤10μm |
| Scanning Resolution | ≤2.5μm/pixel |
| Yarn Width Range (Warp) | 70-820μm |
| Yarn Width Range (Weft) | 70-820μm |
| Warp Yarn Density Range | 10-53 threads/cm |
| Weft Yarn Density Range | 10-53 threads/cm |
| Detection Time | 30 seconds/test (manual nominal value; actual time depends on inspection dimensions) |
| Electronic Fabric Size | 6~8cm square or circular fabric |
| Statistical Count | 50-265 threads (fixed 5cm scanning in warp and weft directions) |
| Scanning Area | 5cm * 5cm |
| Dimensions | 31×31×54 cm (L×W×H) |
| Product Weight (Net Weight) | 10Kg |
| Power Supply Range | AC220V ±15%, Frequency: 50/60Hz |
| Power Consumption | ≤100VA |
Reports and Method Evaluation
Review image-linked results and report exports. Confirm applicable method, sample preparation and acceptance criteria before evaluation.
Measure the warp and weft density, width of an electronic fabric using microscopic images, automatically generate a report, and review process data results.
- Automatically measure the warp and weft density, width of electronic fabric.

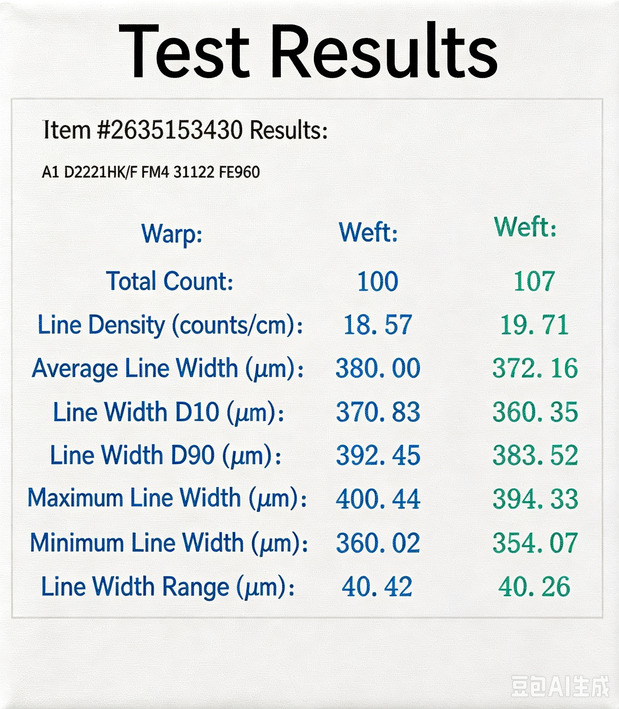

- Automatic Report:Automatically generate a statistical report from the measured data without manual intervention. Report results are available using microscopic images.
- Data Export and Custom Formats:Supports exporting inspection data to Excel; other specified formats can be developed to customer requirements.
Application Scenarios
Suitable for all types of electronic fabric, applicable to factory quality inspection as well as research in universities, research institutes, and laboratories.
FAQ
Does a selected local area affect the statistics?
Video 72 shows the mean yarn width changing after a local area is selected. Record the measurement area when comparing means, D10, D90, extrema and range.
How do density and yarn-width units differ?
The demonstration uses units such as threads/cm and threads/5cm for density, and μm for yarn width. Keep direction, measurement area and count state when comparing results; changing a unit label alone is insufficient.
What is the testing time?
Historical and current materials use different timing scopes. Confirm the specific model, sample, scan area and report output scope during evaluation.
How is this different from the woven-fabric density tester?
This model measures electronic-fabric density, yarn width and gap area. The woven-fabric model primarily measures yarn density. Compare model-specific ranges and test conditions.
