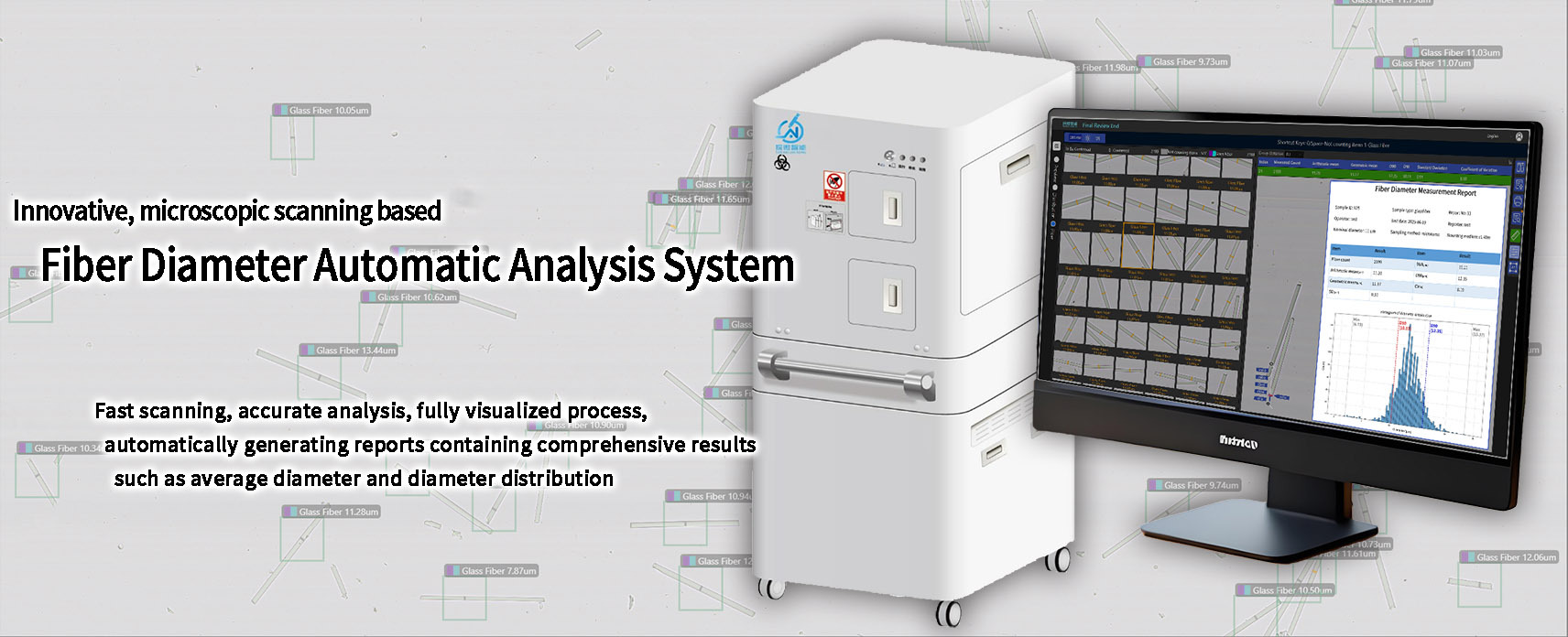

Smart Carbon Fiber Diameter Analyser
High Precision Diameter Analysis
With high-resolution scanning and advanced target segmentation algorithms, the error of fiber diameter automatic analysis is less than 0.1 μm.
Comprehensive Report
Automatically scan, analyze, and generate analysis reports, providing average, SD, CV, distribution histogram of diameter and more.
Visualization and Traceability
Over 2000 fibers can be analyzed in a single test, and the image and diameter markings of every fiber can be viewed.
Automatic and Fast
Complete a single test in 3 minutes. Perform 240 tests in one run. Automated processes without human attendance.
Trial
Online Trial
Experience test scenarios of real samples. You can browse the whole slide image, check the system's diameter analysis of each fiber, and generate a report with one click.
The trial version is similar to the actual product UI, with partial functions available.
Click to experience
Specifications

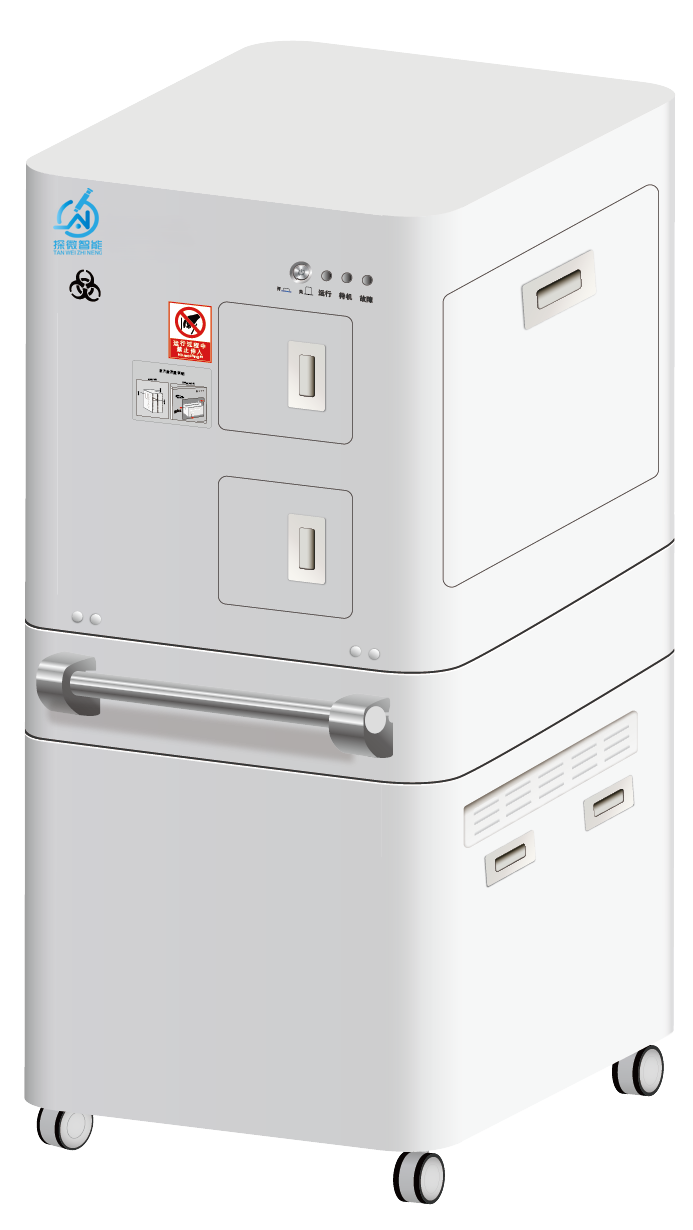

| Device Model | FG-20X-240-A |
| Scan Range | Maximum scanable area:29mm×18mm |
| Objective Lens | 20time (magnification 200 times), 40 times (magnification 400 times), 100 times (magnification 1000 times) |
| Slide Loading | Up to 240 slides (30 /box, load up to 8 boxes at a time) |
| Scanning Speed | not less than 0.75 cm²/min |
| Scan Resolution | ≤0.2μm/pixel |
| Image Deformation Error | less than 1 Pixel/mm |
| Support Picture Format | jpg,tif |
| External Dimensions | L x W x H:1090mm x 660mm x 1450mm |
| Product Weight (Net Weight) | 400±2Kg |
| Single Sample Report Time | 3min/each |
| Scan Rate Sample Size Per Day | more than 200 copies |
| Scan The Sample Size Every Day | 24unattended operation on the hour |
