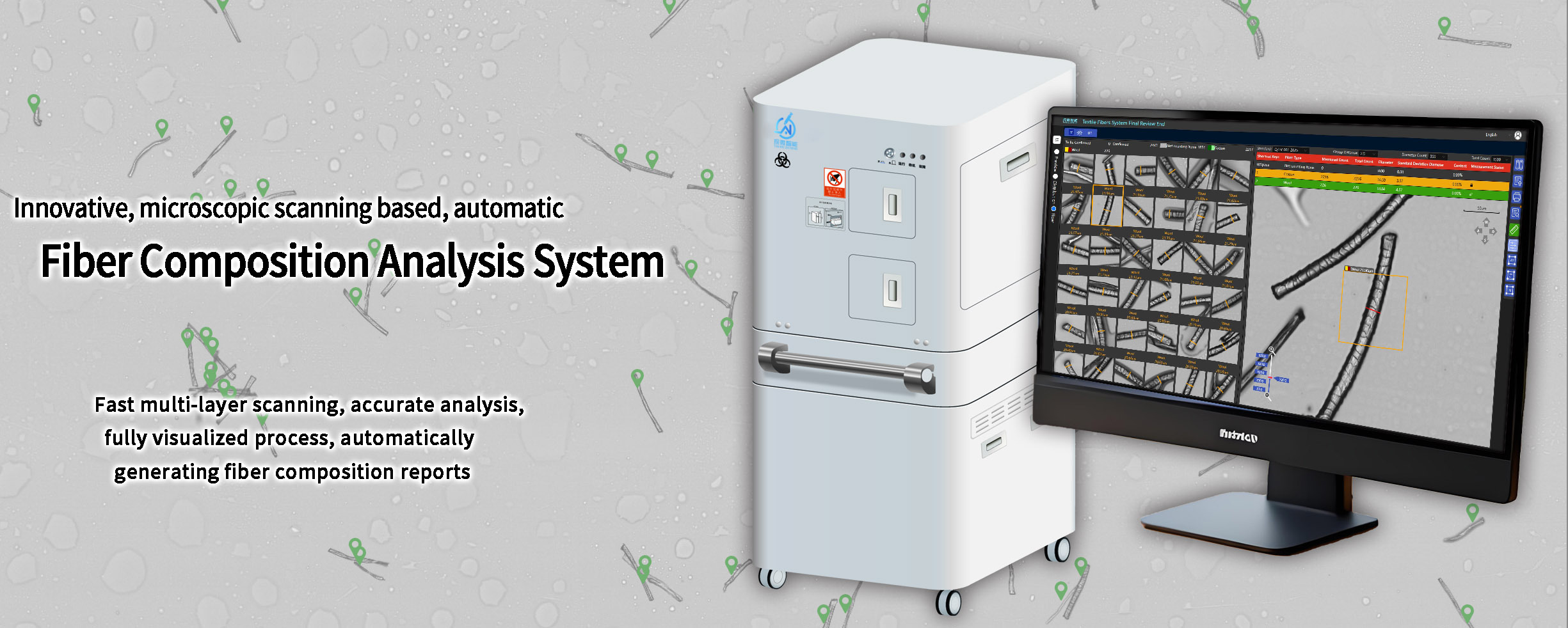

Animal Fiber Composition Analysis System
Multi-layer scanning ensures the acquisition of all morphological characteristics, followed by automatic analysis and quantification. Typical test time is approximately 3 minutes for the high-throughput model and 5 minutes for the desktop model; actual fiber counts are shown in the report, with visualization throughout the process.
- After sample preparation, loading, and initiation: automatic scanning, focusing, and measurement
- AI deep learning recognition with image and measurement review for each identified fiber
- One-click report generation; standard applicability depends on the material, method, and validation conditions
- Data can be exported to Excel/PDF, with support for cloud data management
- Simple operation; ordinary workers can take up the post after brief training
Core Features
Multi-layer Scanning
For various fiber thicknesses, from top surface to the bottom, all morphological features are captured.
Automatic Quantification
Fibers are automatically classified, their diameters measured, and component mass fractions calculated.
Visualization and Traceability

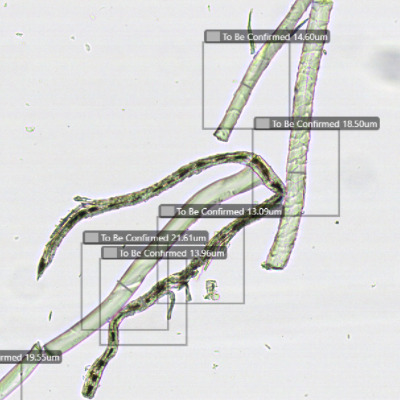

Over 2000 fibers can be analyzed in a single test, and the image of every fiber can be viewed.
Automatic and Fast
Typical test time: approximately 3 minutes for the high-throughput model and 5 minutes for the desktop model; actual timing depends on scan settings and sample conditions.
Technical Parameters
| Product Model | TW-H-20X-N-WC-R-01 |
|---|---|
| Physical Magnification of Captured Images | 200x |
| Digital Magnification of Captured Images | 1000x |
| Historical Report Storage Capacity | 100,000 reports |
| Digital Slide Storage Capacity | 20,000 slides |
| Power Supply Range | AC220V ±15%, Frequency: 50/60Hz |
| Power Consumption | ≤300VA |
| Operating Temperature | 5℃ ~ 40℃ |
| Humidity Range | ≤80% |
| Sample Loading Capacity | 30 slides per box, up to 8 slide boxes; supports continuous loading and unloading with replenishment of slide boxes. |
| Scanning Speed | ≤10.6cm²/min |
| Scanning Resolution | ≤0.35 μm/pixel |
| Detection Time | 3min |
| Equipment Operation Stability | 7*24 hours unattended operation |
| Operating Software | Linux, Windows |
| Dimensions (L × W × H) | 1090 × 660 × 1450 mm |
| Net Weight | 400 ± 2 kg |
| Product Model | TW-D-20X-N-WC-R-01 |
|---|---|
| Physical Magnification of Captured Images | 200x |
| Digital Magnification of Captured Images | 1000x |
| Historical Report Storage Capacity | 2,000 reports |
| Digital Slide Storage Capacity | 100 slides |
| Power Supply Range | AC220V ±15%, Frequency: 50/60Hz |
| Power Consumption | ≤200VA |
| Operating Temperature | 5℃ ~ 40℃ |
| Humidity Range | ≤80% |
| Sample Loading Capacity | Single slide |
| Scanning Speed | ≤10.6cm²/min |
| Scanning Resolution | ≤0.35 μm/pixel |
| Detection Time | 5min |
| Operating Software | Windows |
| Dimensions (L × W × H) | 500 × 543 × 613 mm |
| Net Weight | 30 ± 2 kg |
Application Scenarios
Widely used in yarn mills, textile mills, garment factories, third-party testing institutions, and other major organizations for incoming material inspection and production inspection.
