Woven Fabric Density and Glass Fiber Diameter Inspection Equipment

New AI Intelligent Inspection Expert

Electronic Fabric Smart Tester
Auto Measurement, Auto Report

Warp/weft density, yarn width and gap area measurement. Timing depends on the sample and scan area.

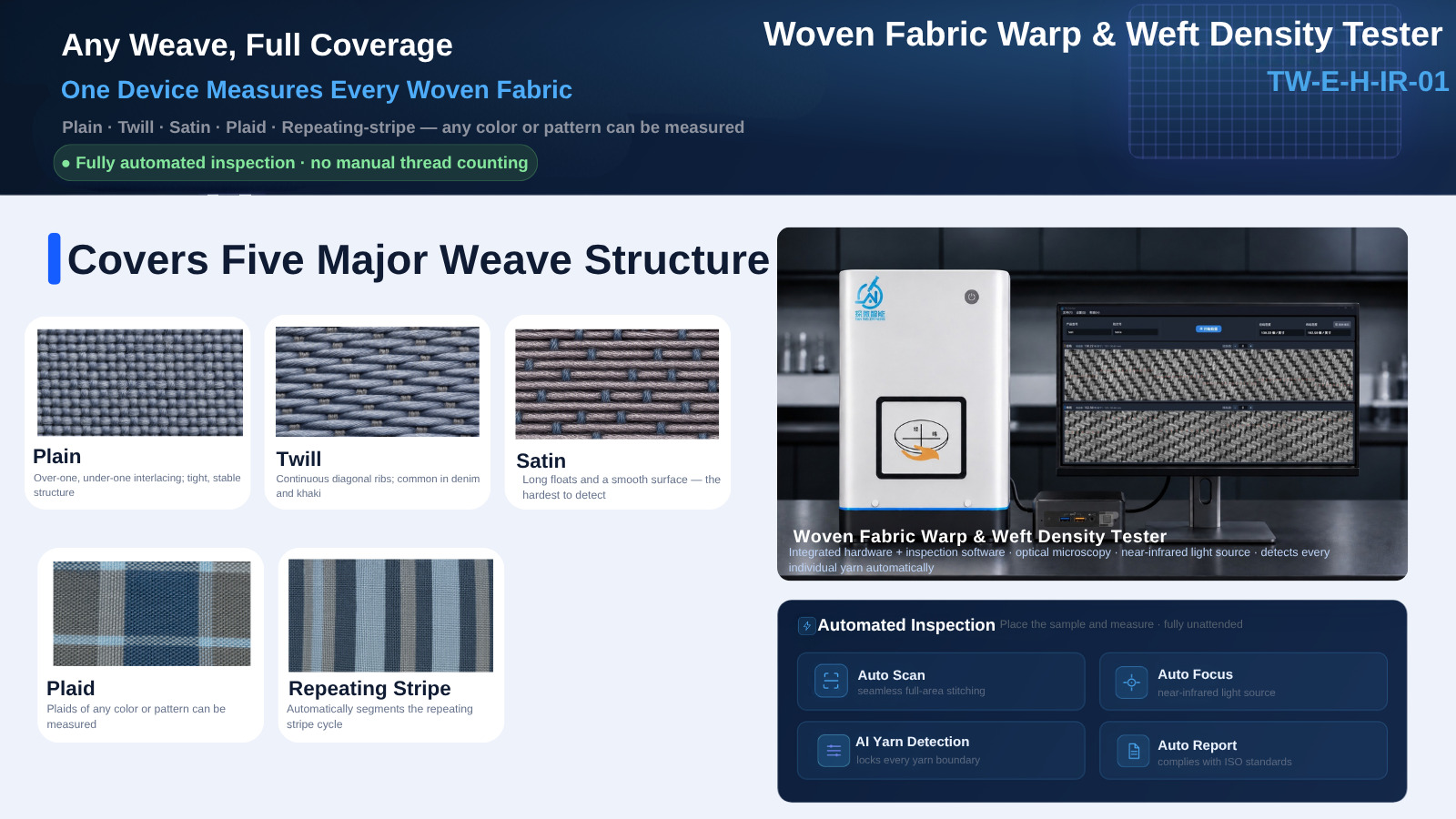

Woven Fabric Warp/Weft Density Smart Tester
40–300 threads/inch, Multiple Weave Types

For single-layer woven fabrics without hidden yarns. Review retained images and confirm suitability with your sample.

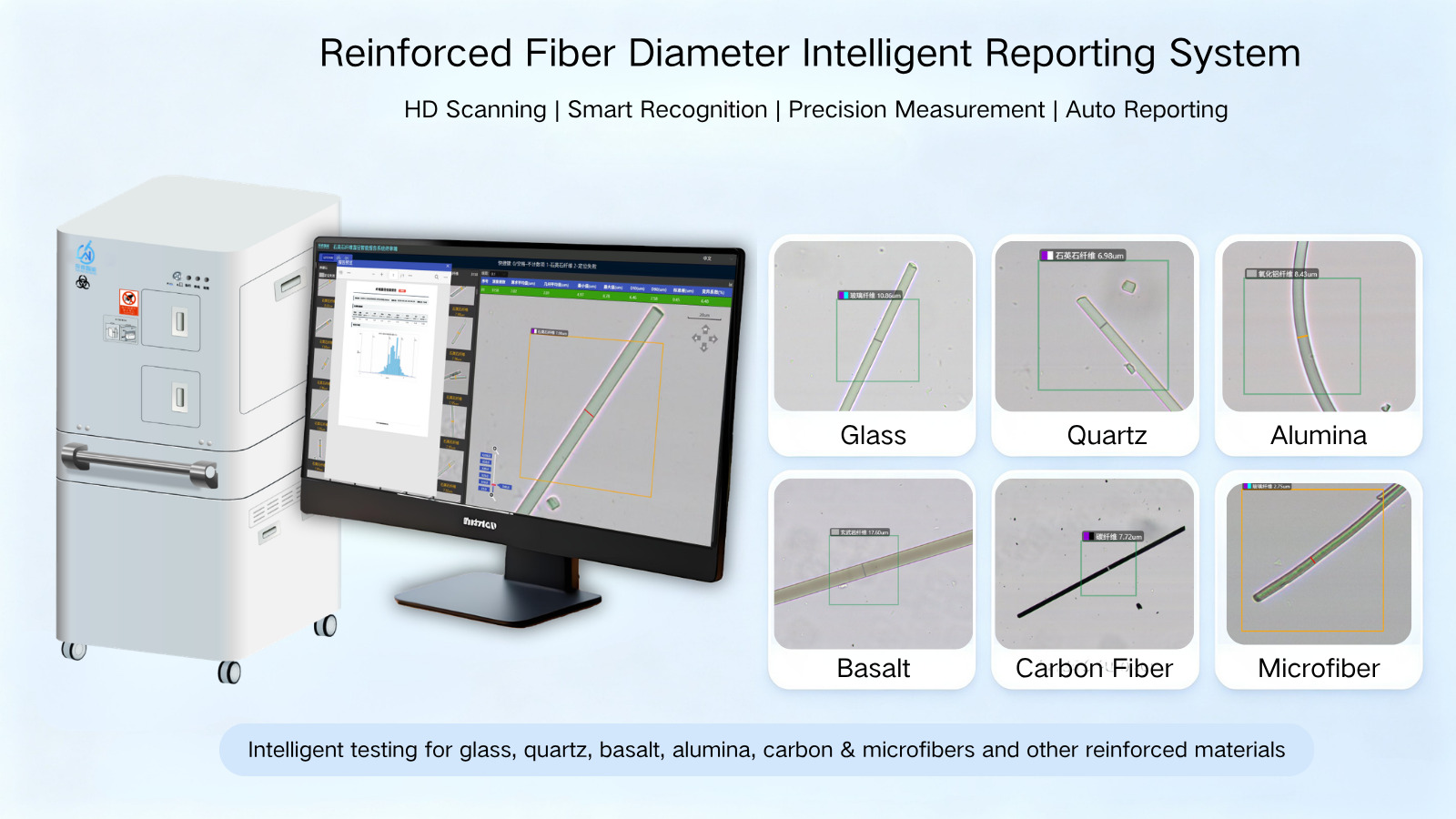

Fiber Diameter Intelligent Reporting System
10,000+ Capacity, Image Review

Diameter distributions and automated reports. Actual counts and timing depend on preparation, model and scan settings.

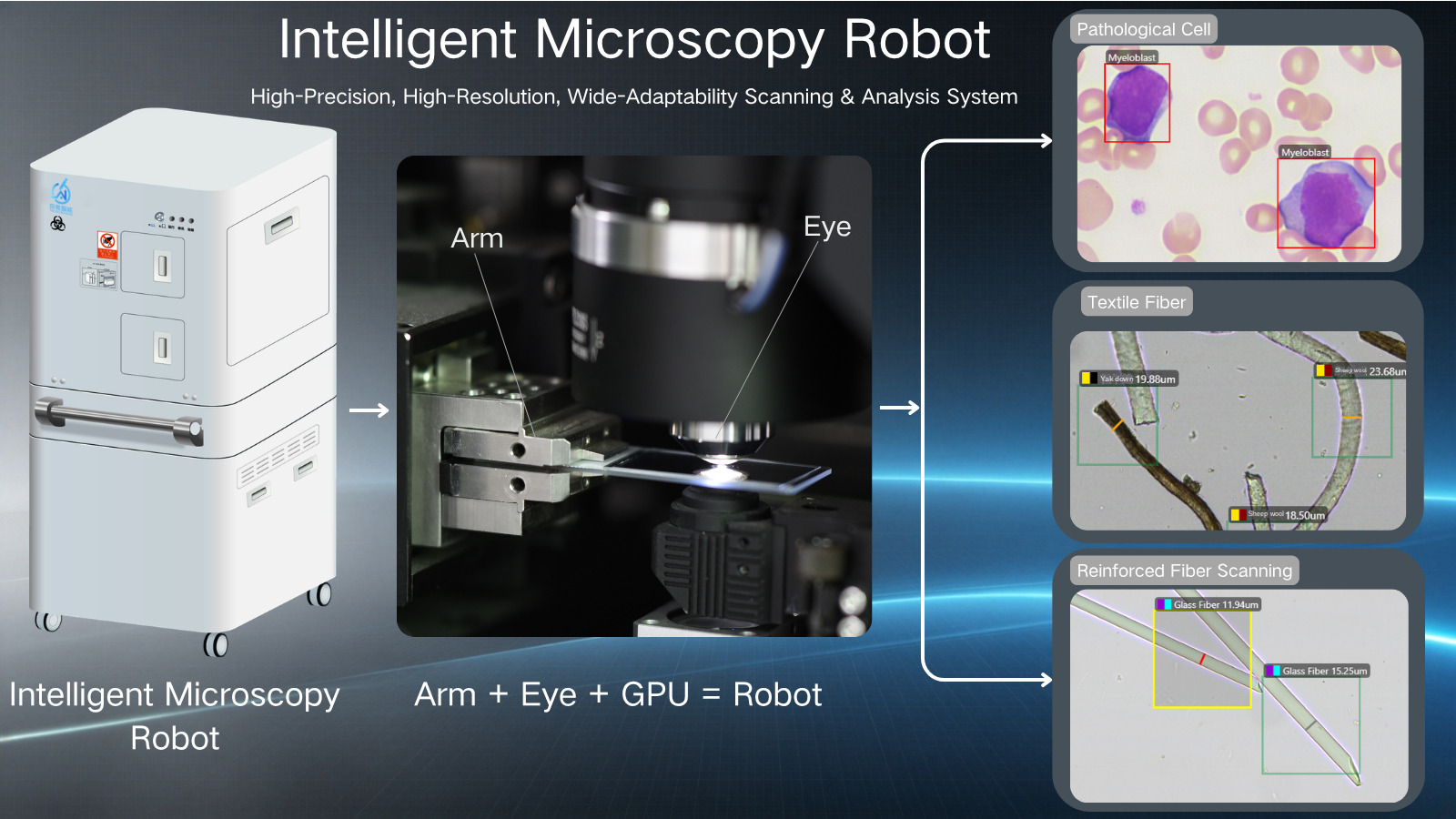

Intelligent Microscopic Robot
Fully Automatic Scanning Inspection

Automated high-definition rapid scanning for microscopic morphology inspection of reinforced fibers, pathological cells, textile fibers, etc.

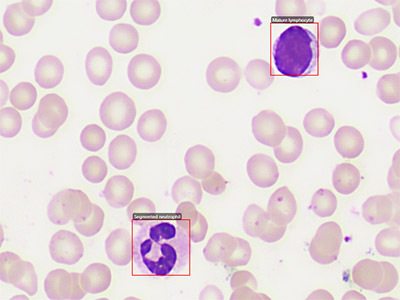

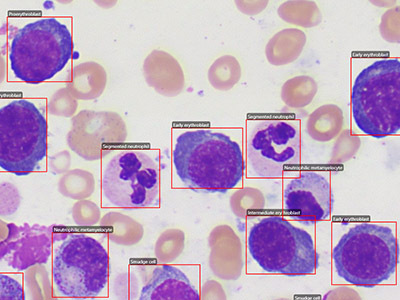

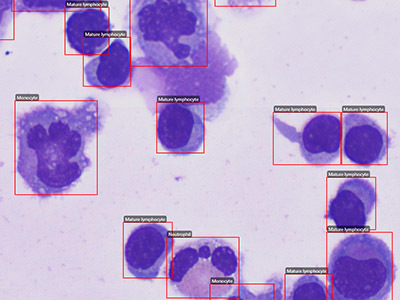

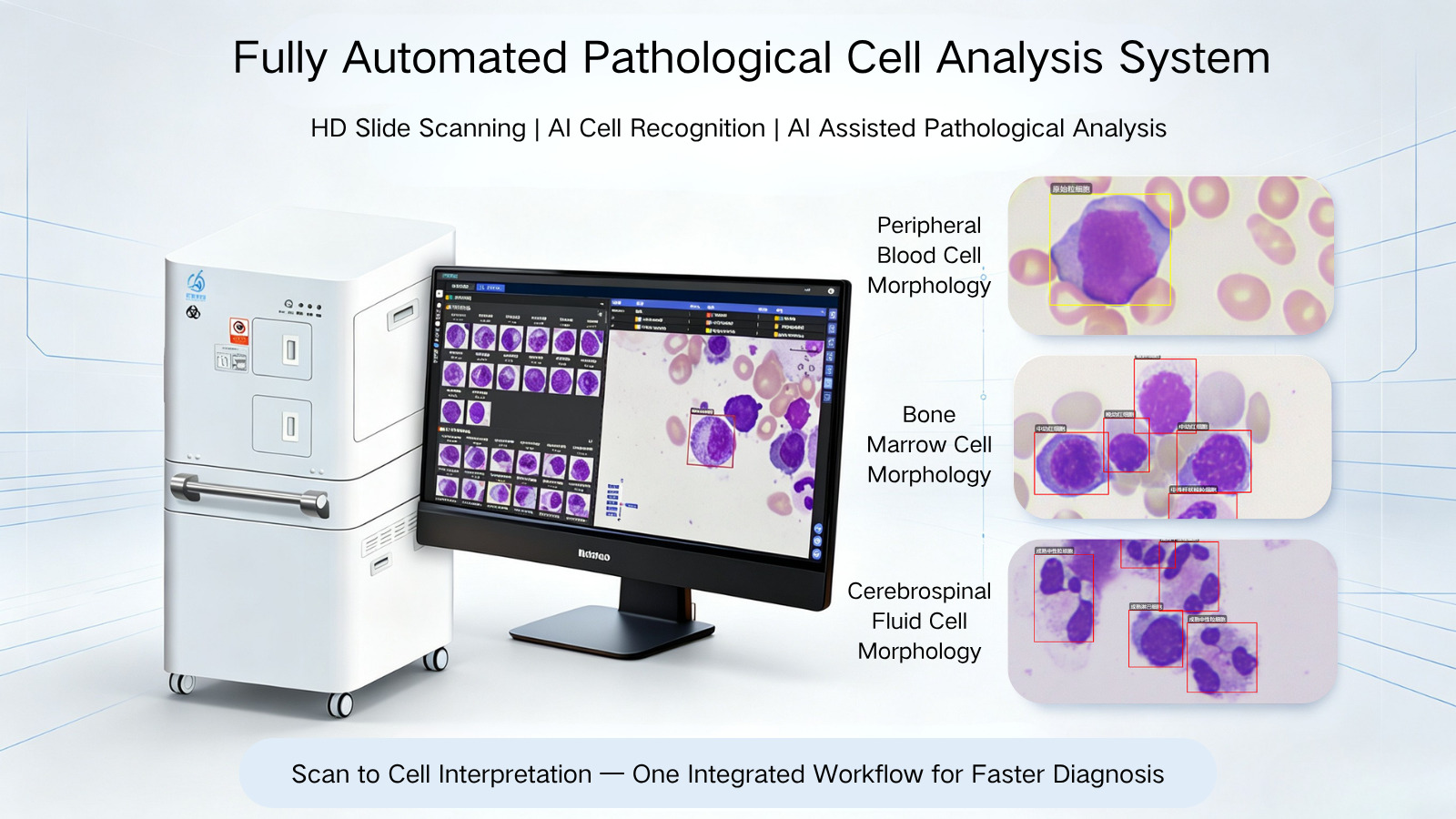

Pathological Cell Intelligent Analysis System
Improve Slide Reading Efficiency

Fully automatic microscopic scanning + AI recognition, more objective results, reducing doctors' workload

Request a Trial View Product Details

Free sample testing to verify equipment accuracy

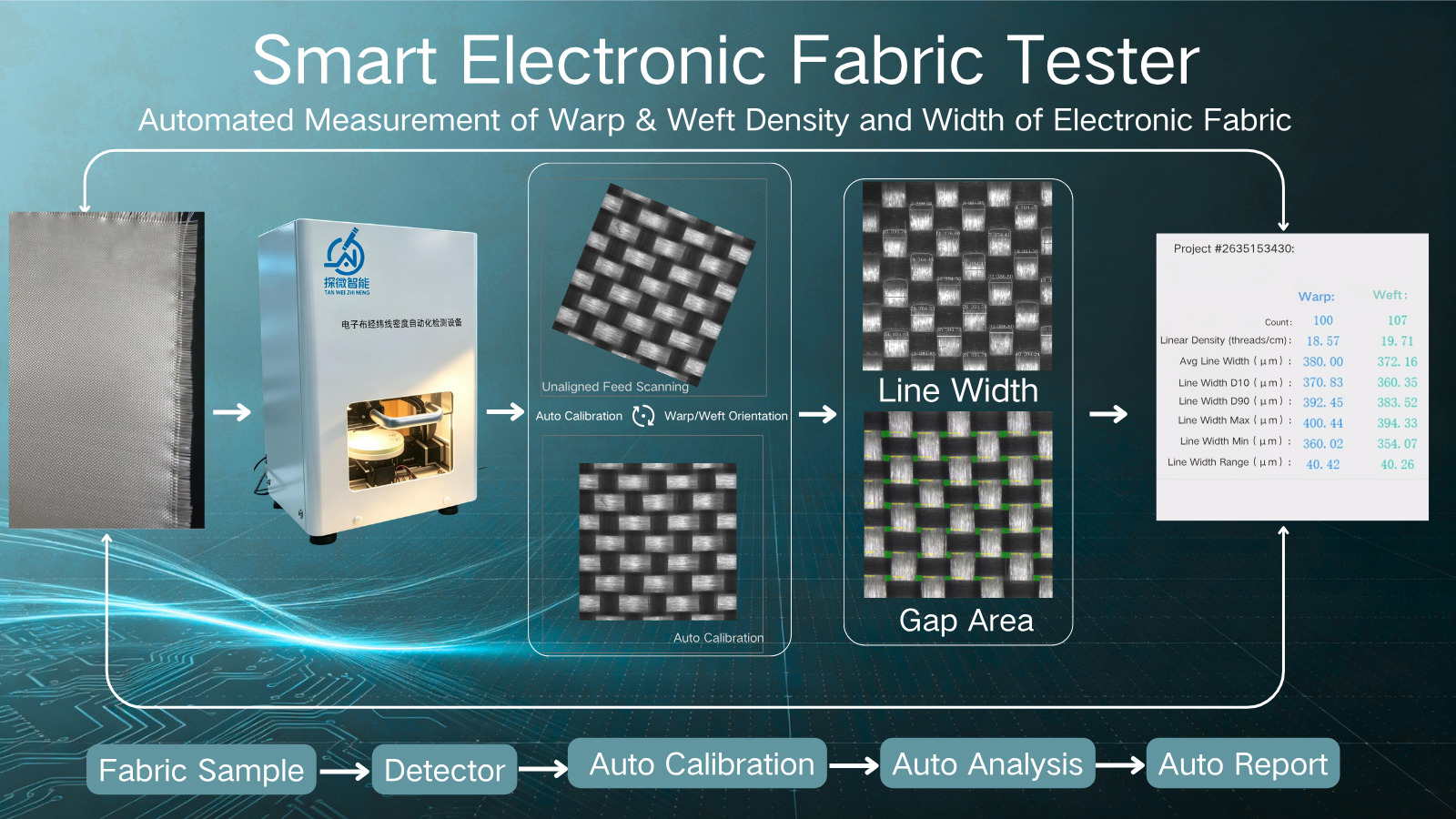

Electronic fabric warp/weft density inspection equipment

Choose equipment for your inspection

Microscopy platforms for different sample volumes. Dedicated equipment for fabric density.

View all products

Microscopy platforms

Dedicated fabric equipment

Individual measurements. Reviewable results.

High-resolution scanning, diameter distribution and automated reporting.

Explore fiber measurement

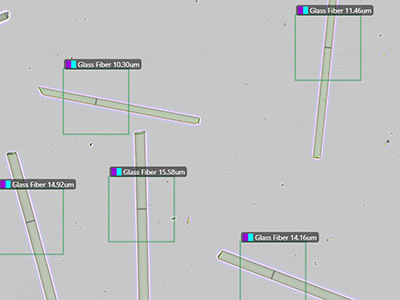

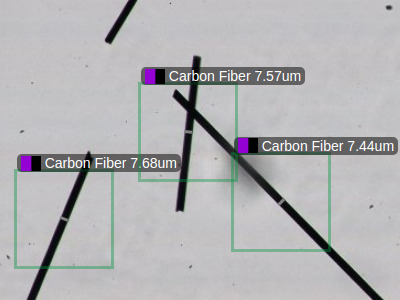

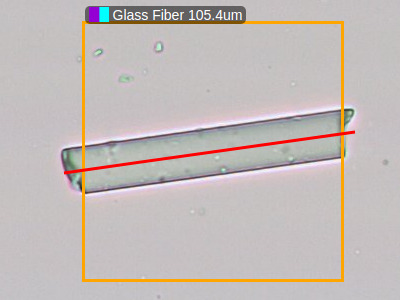

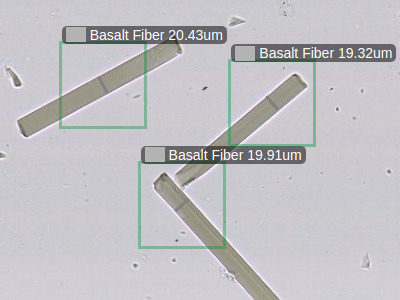

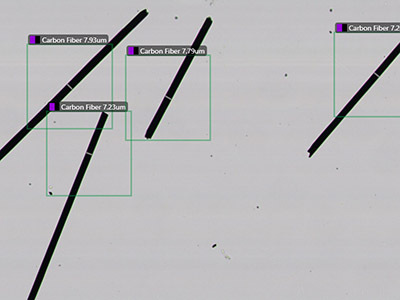

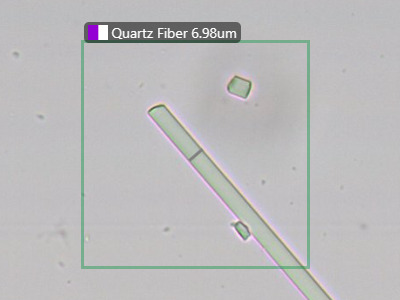

Individual diameter measurements — example
Individual diameter measurements — example
Diameter distribution report — example
Diameter distribution report — example

Images and reports are examples from different samples.

Measurement
Diameter measurement and distribution statistics
Result review
Individual images and automated reports

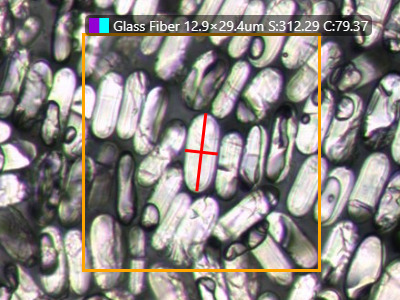

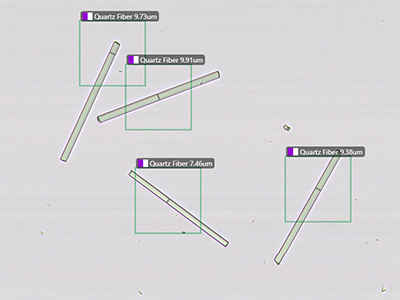

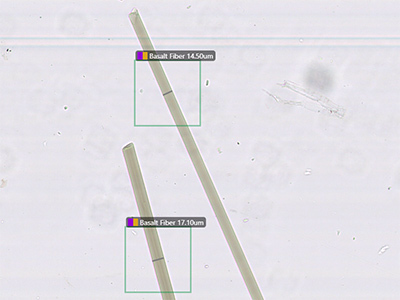

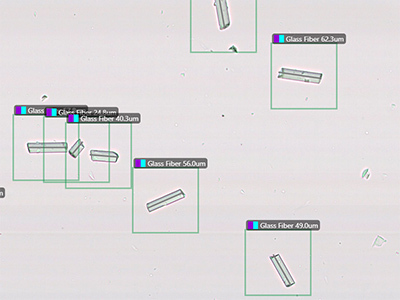

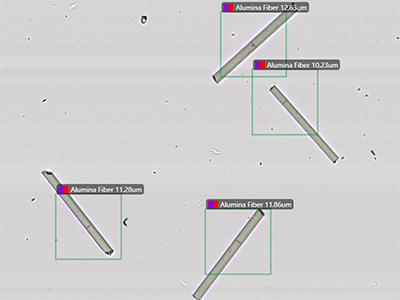

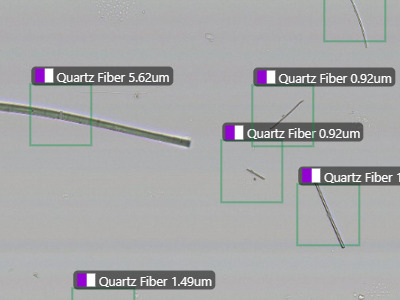

Glass fiber Glass wool Alumina fiber Carbon fiber Basalt fiber Quartz fiber Fiber length Cross-section analysis

See the yarns. Count automatically.

From yarn recognition to density statistics, with images retained for review.

Explore fabric measurement
Woven fabric measurement setup
Woven fabric measurement setup
Electronic fabric yarn-width measurements — example
Electronic fabric yarn-width measurements — example
Woven fabrics
Plain, twill, satin, plaid and striped weaves
Measurement
Warp/weft density; yarn width and gap area for electronic fabrics

Woven fabric: single-layer samples without hidden yarns. Images are examples.

View electronic fabric details

More microscopy applications

Find the right equipment

Review actual inspection results before confirming a configuration.

Request sample evaluation

  1. Discuss your samples

    Confirm materials, measurement requirements and sample condition.

  2. Sample test or demonstration

    Agree on sample preparation and demonstration arrangements.

  3. Review images and reports

    Compare the results with your current inspection process.

  4. Confirm configuration and quote

    Choose equipment around the application and sample volume.

Tanvint combines high-resolution scanning and AI-assisted analysis for reinforcing fibers, textiles and pathological cells.
