PB Cell Analyzer
High Precision & Resolution Scanning
Scan the whole slide with 100x oil lens. Ultimate and stable scanning results can be achieved thanks to advanced focusing algorithms and mechanisms.
Automatic Quantification
Utilize accurate and efficient cell classification algorithms to automatically analyze cells across the whole slide.
Digitization and Traceability
Digitalized slides make storage and management more convenient. Key morphological information markings enable diagnosis traceability.
Online Review & Cloud Storage
Web-based smart UI and cloud storage enable efficient reviewing and remote working.
Automatic and Fast
Scan a single slide in 10 minutes. Perform 240 tests in one run. Automated processes without human attendance.
Trial
Online Trial

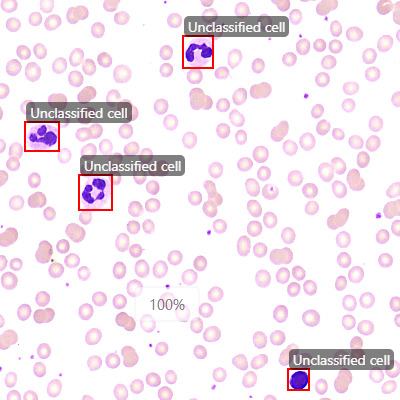

Experience test scenarios of real samples. You can browse the whole slide image, check the classification of each cell, and generate a report with one click.
The trial version is similar to the actual product UI, with partial functions available.
Click to experience
Specifications
| Device Model | TW-P-100X-320-A |
| Scan Range | Maximum scanable area:29mm×18mm |
| Objective Lens | 100time (1000 times magnification) |
| Slide Loading | Up to 240 slides (30 /box, load up to 8 boxes at a time) |
| Scanning Speed | Not less than 0.3 cm²/min |
| Scan Resolution | ≤0.085µm/pixel |
| Image Deformation Error | Scan the collected pictures in each picture, X and Y the pixel error in the direction is less than 1 Pixel/μm |
| Connection Method | USB2.0 protocol, USB3.0 protocol, network port (TCP/IP protocol )、Camera Link protocol |
| Support Picture Format | jpg,tif |
| External Dimensions | L x W x H:1090mm x 660mm x 1450mm |
| Product Weight (Net Weight) | 400±2Kg |
| Single Slide Scanning Time | 10min/each |
| Scan The Sample Size Every Day | 144share /every day |
| Equipment Operation Stability | 24unattended operation on the hour |
